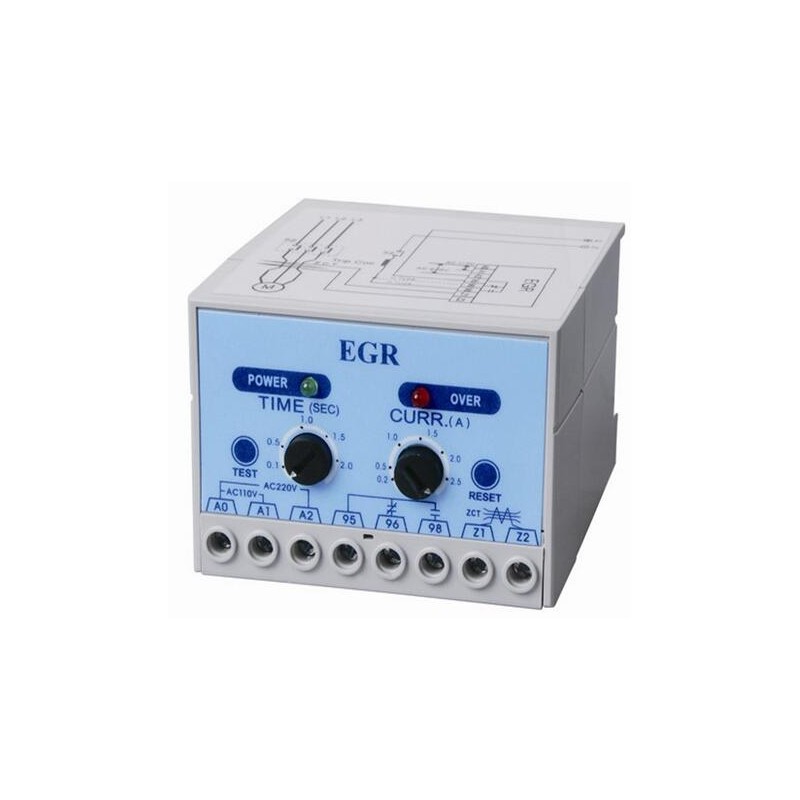

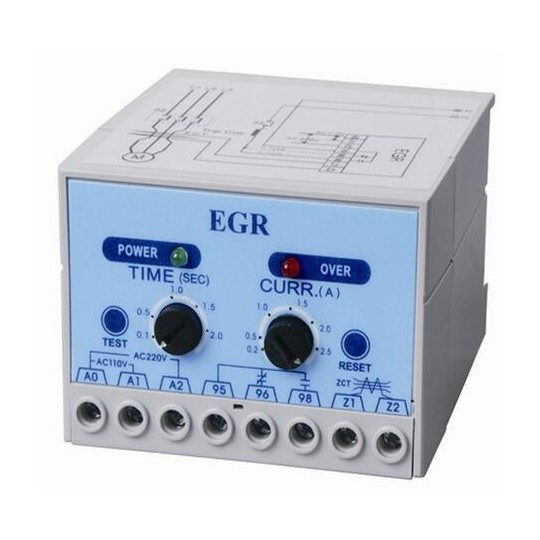

Schneider EGR Electronic Ground fault Relay

Reference:

$0.00

PROTECTIONS:

Protective Item : Ground Fault

Trip Time : O- Time

FEATURES:

 MCU based compact design

 Ground fault protection with ZCT*

 Trip & Run indication LED

 Manual / Electrical Reset

Quantity
There are not enough products in stock

Add to wishlist

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)

SPECIFICATION:

Ground Fault (GF) Type Range

Current Setting 10N-M 100mA - 1,000mA

 Trip Time Setting O-Time 0.2-2.0 sec

 Reset Manual / Electrical

 (Push Reset Button or Interrupt Supply Power)

 Power Supply 110/220VAC, 50/60Hz

 Contact Rating Model/Rating 1-SPDT (1C), 3A/250VAC Resistive

 Status Normally De-energized

 Mounting 35mm DIN-Rail / Panel

1. ZCT-35, 35mm, Suitable for 200A

2. ZCT-80, 80mm, Suitable for 600A

3. ZCT-120, 120mm, Suitable for 800A/1000A
